LED stage lighting

LED Spotlight

CL-2016F · CL-2020F · CL-2030F · CL-2016PC · CL-2020PC · CL-2030PC

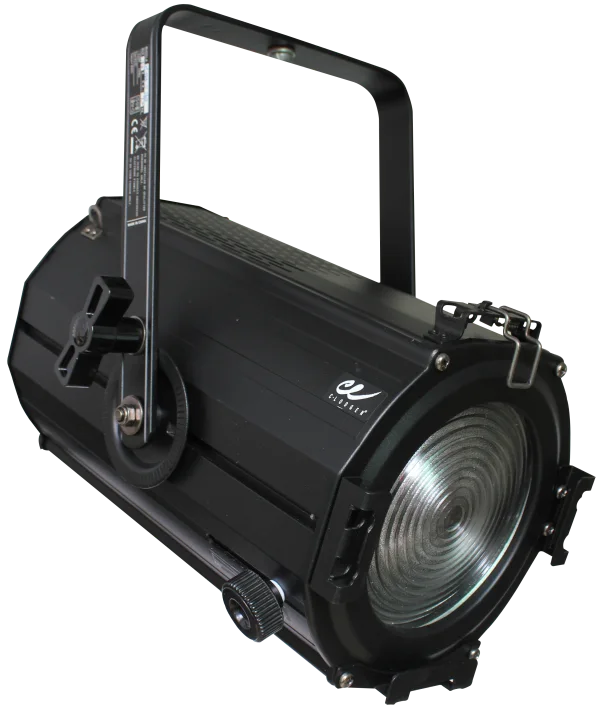

LED Spotlight, model CL-2016F / CL-2020F / CL-2030F /CL-2016PC / CL-2020PC / CL-2030PC.

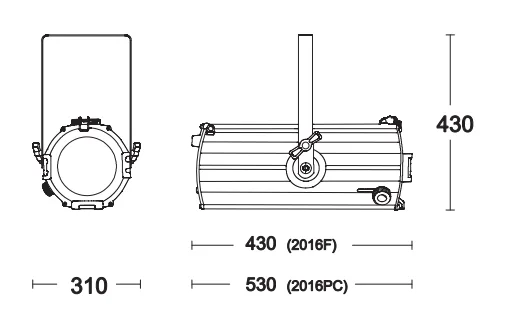

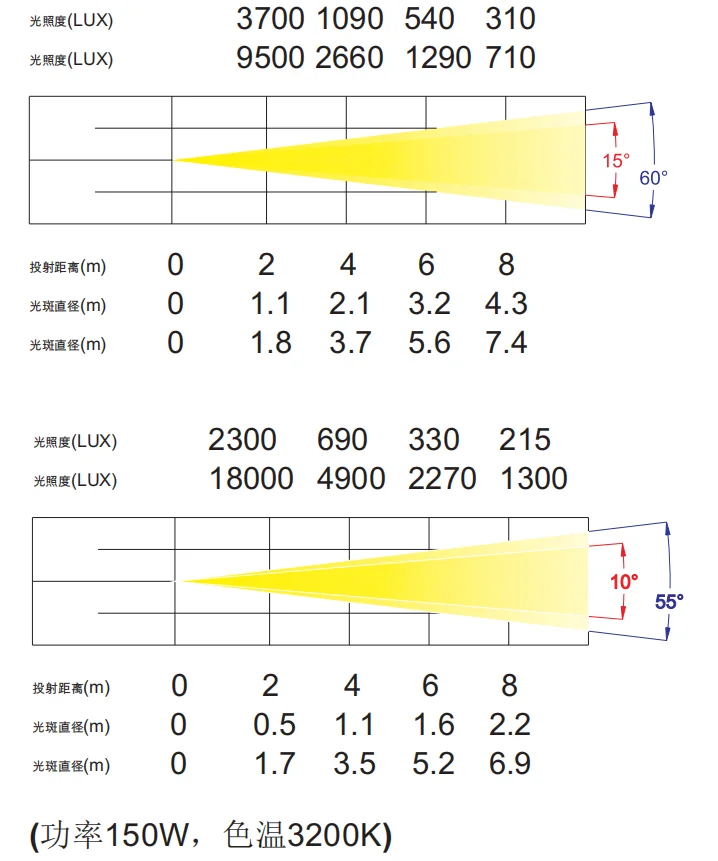

.product-sections [role="tablist"] { display: none !important; } .product-sections [role="tabpanel"] { display: block !important; }Products Dimension Illuminance map Pattern and Color Product information download Product Video

Products

LED Spotlight · CL-2016F / CL-2020F / CL-2030F /CL-2016PC / CL-2020PC / CL-2030PC Specifications
Model	CL-2016F / CL-2020F / CL-2030F /CL-2016PC / CL-2020PC / CL-2030PC
LED source	Light source: warm white 3200K/cool white 5600K; LED power: 150W/200W/300W; LED lifetime: > 50,000 hours; Color temperature: 3200K/±100K5600K±150K; Luminous flux (150W 3200K)11500LM; CRI: ≥95
Optics	Motorized/manual zoom; Beam angle: 15°-60°/10°-55°; Fresnel lens F / aspherical lens PC
Control	Control: manual and DMX; DMX mode: 1 channels; 16-bit electronic dimming: 0- 100%; Quiet cooling fan; Four-button LCD display
Colors	warm white/cool white
Electrical	电压AC110-240V 50/60Hz；功率150W±10%/250W±10%/320W±10%；工作温度 -20°C 至45°C
Connections	3-pin DMX socket
Construction	高导热性能铝合金A
Weight and protection rating	Weight: 8.6kg; Protection rating: IP20
